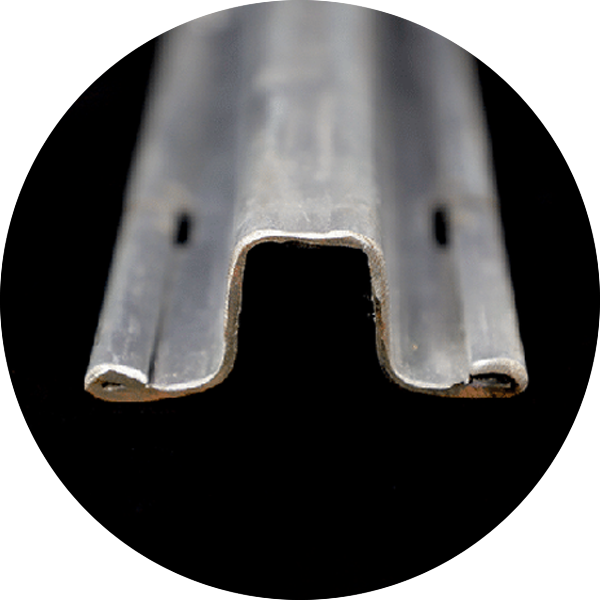

The crimped edge posts, also known as rolled edge stakes, bent edge poles, are ideal for VSP Systems,
T-Bar Trellis System or Modified Sprawl Trellis Systems. It features in the reinforced edges for extreme
strength while minimizing the weight for easy transportation and lower costs in materials.

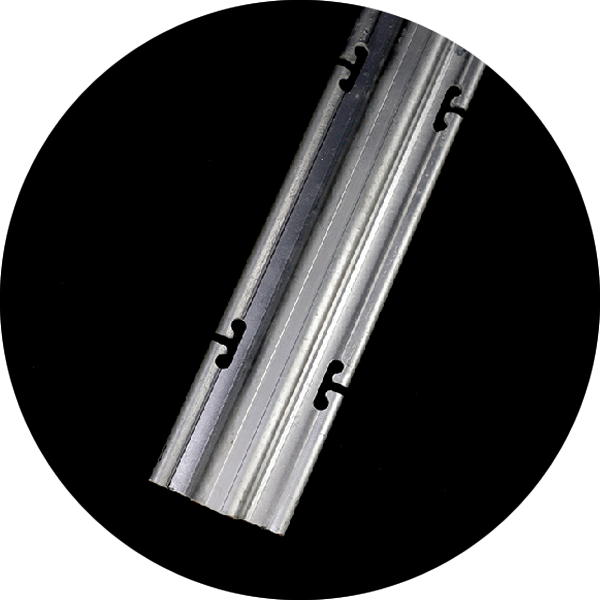

Parallel slots or holes are punched every 4-8 inches along the posts for flexible wire installation on each
side, and also made to fit horizontal crossarm when necessary.
● Made of HSS 340™ Premium Steel
● Coatings available:
Hot rolled black/ Pre-galvanized/ Hot dipped galvanized/ Tri-Layer Coated™
● Typical paired T-notch spaced 6" intervals and total 6 sets along each overall piece or
customized Slots/holes subject to specifications
● Flat edge for easy attachment to cross pieces or wood panels
● Choices of varied patterns for different trellis or fence applications
● Lengths are cut to specifications
● Standard sizes are as per below chart
● Custom fabrication service available for specified patterns

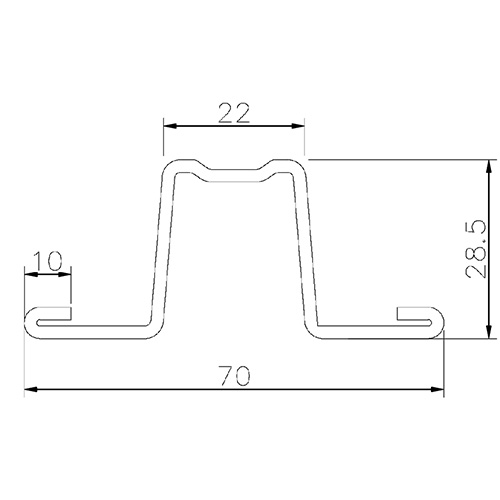

DIMENSION
Open Gable Trellis for Table Grape
T-bar Trellis for Berries
Tutara AVY for Apples/ Pears / Cherry
VSP Trellis for Wine Grape
Expanded Arm for Trellis System
Sign Post
Garden Fence
| Item# | Gauges Avail. | Weight |
| PST-CEU125-1.5 | 1.5mm/ 16GA | 1.47kg/m or 0.99lbs/ft |
| PST-CEU125-1.8 | 1.8mm/ 15GA | 1.77kg/m or 1.19lbs/ft |
| PST-CEU125-2.0 | 2.0mm/ 14GA | 1.96kg/m or 1.32lbs/ft |
| PST-CEU125-2.3 | 2.3mm/ 13GA | 2.26kg/m or 1.52lbs/ft |
| PST-CEU125-2.5 | 2.5mm/ 12.5GA | 2.45kg/m or 1.65lbs/ft |
We offer complete custom metal fabrication for your stakes depending on your requirements for your grape trellising. A series of punch holes can be added to stakes to allow for tie mounting and can be made to your size, hole configuration.
Request a quote on the custom fabricated assemblies you need!
